Importing Certificates

Configure SSL/TLS certificates for two primary use cases: enabling HTTPS for the BrowserStack Code Quality UI, and trusting external services with self-signed certificates.

1. Prerequisites

Ensure you have the following before proceeding:

• [ ] Certificate file in Base64 encoded X.509 (PEM) format (e.g., server.crt)
• [ ] Private key file in Base64 encoded X.509 (PEM) format (e.g., server.key)

NOTE

Files must be in PEM format. Binary DER or other formats are not supported.

2. Enabling HTTPS for the UI (Using Your Own Certs)

Enable secure HTTPS access to the BrowserStack Code Quality web interface using your own SSL certificates.

Step 1: Volume Mapping

Update the volumes: section in your docker-compose.yml to mount your certificates directory:

services:
  app:
    image: "browserstack/code-quality:1.9.36.0"
    container_name: BrowserStackCodeQuality
    volumes:
      - /home/${USER}/BrowserStackCodeQuality/certs:/opt/gamma/certs
      - /home/${USER}/BrowserStackCodeQuality/gamma_data:/opt/gamma_data
      - /home/${USER}/BrowserStackCodeQuality/logs:/opt/gamma/logs

IMPORTANT

The internal container path must always be /opt/gamma/certs.

Step 2: Environment Variables

Add SSL certificate variables to the environment: section in docker-compose.yml:

Variable	Value	Description
ssl_cert	/opt/gamma/certs/server.crt	Path to SSL certificate file
ssl_key	/opt/gamma/certs/server.key	Path to private key file
ssl_port	443	Port for HTTPS communication

environment:
  - ACCEPT_EULA=Y
  - gamma_ui_public_host=https://your-domain.com
  - ssl_cert=/opt/gamma/certs/server.crt
  - ssl_key=/opt/gamma/certs/server.key
  - ssl_port=443
  - PGHOST=db
  - PGPORT=5432
  - PGUSER=postgres
  - PGPASSWORD=postgres

Set file permissions:

chmod 644 /home/${USER}/BrowserStackCodeQuality/certs/server.crt
chmod 644 /home/${USER}/BrowserStackCodeQuality/certs/server.key

3. Trusting External SCM (Self-Signed Certificates)

Trust self-signed certificates from internal Git services (GitLab, GitHub, Gitea) running on-premise.

Step 1: Export the Certificate from Your Browser

1. Open the external SCM URL in your browser.

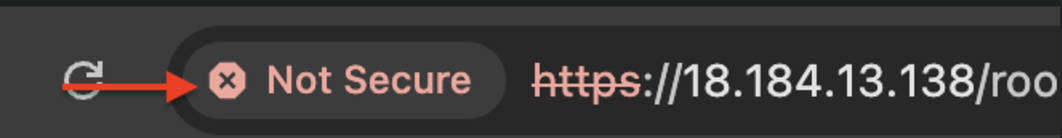

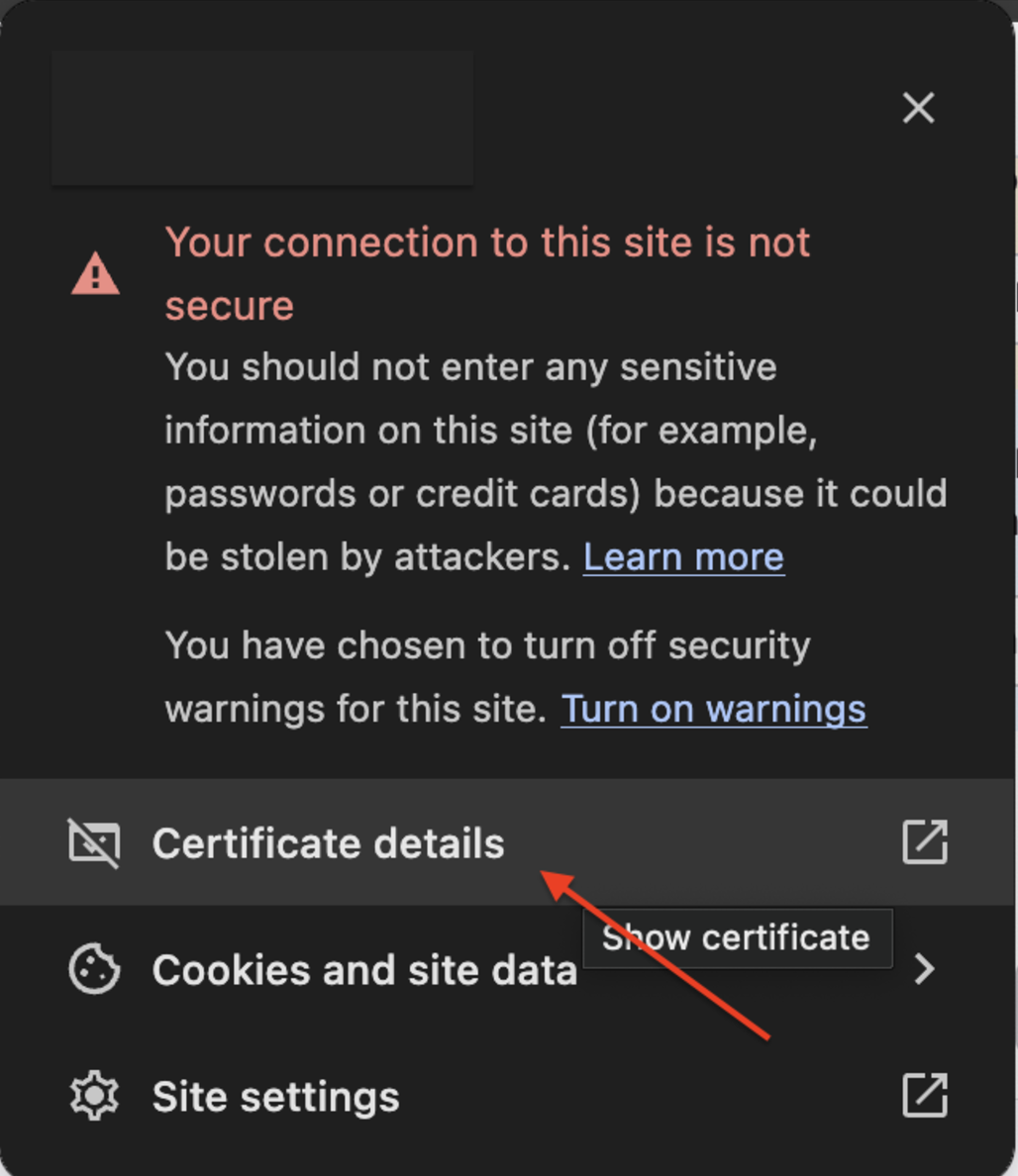

2. Click the padlock icon and select Certificate details.

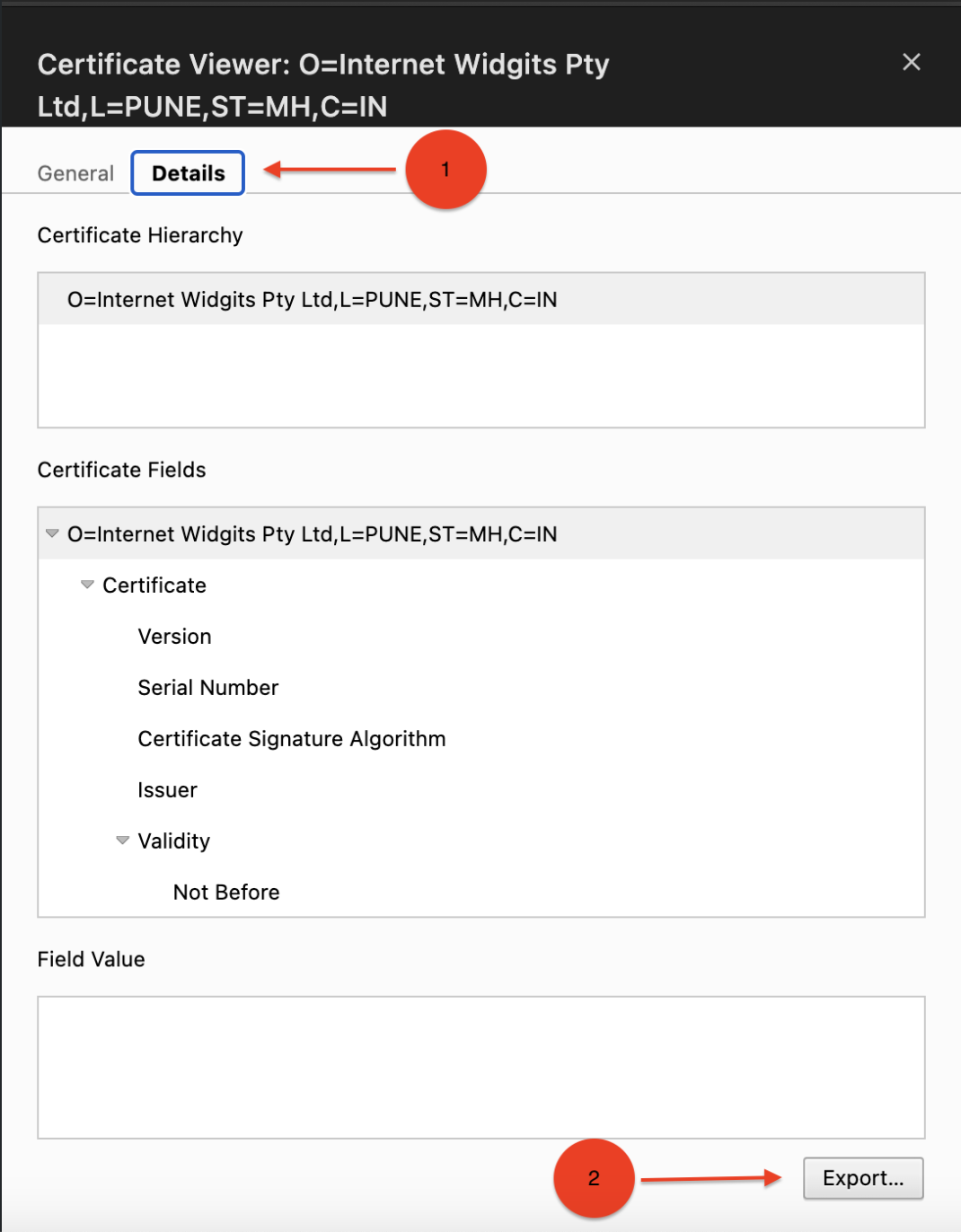

3. Go to the Details tab and click Export. Save the file as a .pem.

4. Click Export, name the certificate, and save it as a .pem file.

Step 2: Mount and Trust

Copy the exported .pem file to your mapped certificates directory:

cp /path/to/exported-certificate.pem /home/${USER}/BrowserStackCodeQuality/certs/
chmod 644 /home/${USER}/BrowserStackCodeQuality/certs/exported-certificate.pem

Add these variables to the environment: section in docker-compose.yml:

environment:
  - ROOT_CERTS_PATH=/opt/gamma/certs
  - EMB_SCM_TRUST_SERVER_CERT=true

4. Apply Changes & Verify

Restart the container to apply the certificate configuration:

docker-compose down
docker-compose up -d

Verify the deployment:

# Check container status
docker-compose ps

# Verify HTTPS access
curl -k https://your-domain.com
