Database Backup and Restore

Protect your BrowserStack Code Quality database with proper backup and restore procedures.

Prerequisites

NOTE

Docker volume mapping (e.g., /home/${USER}/BrowserStackCodeQuality/gamma_data:/opt/gamma_data) is mandatory for backups to persist on the host system.

Ensure version parity between source and destination machines
Stop services on destination machine before restoration
Require admin privileges and knowledge of installation directory
Verify Docker volume mapping is configured correctly

Database Backup Methods

Option A: UI-Based Scheduled Backups

Configure automatic backups through the web interface administration panel:

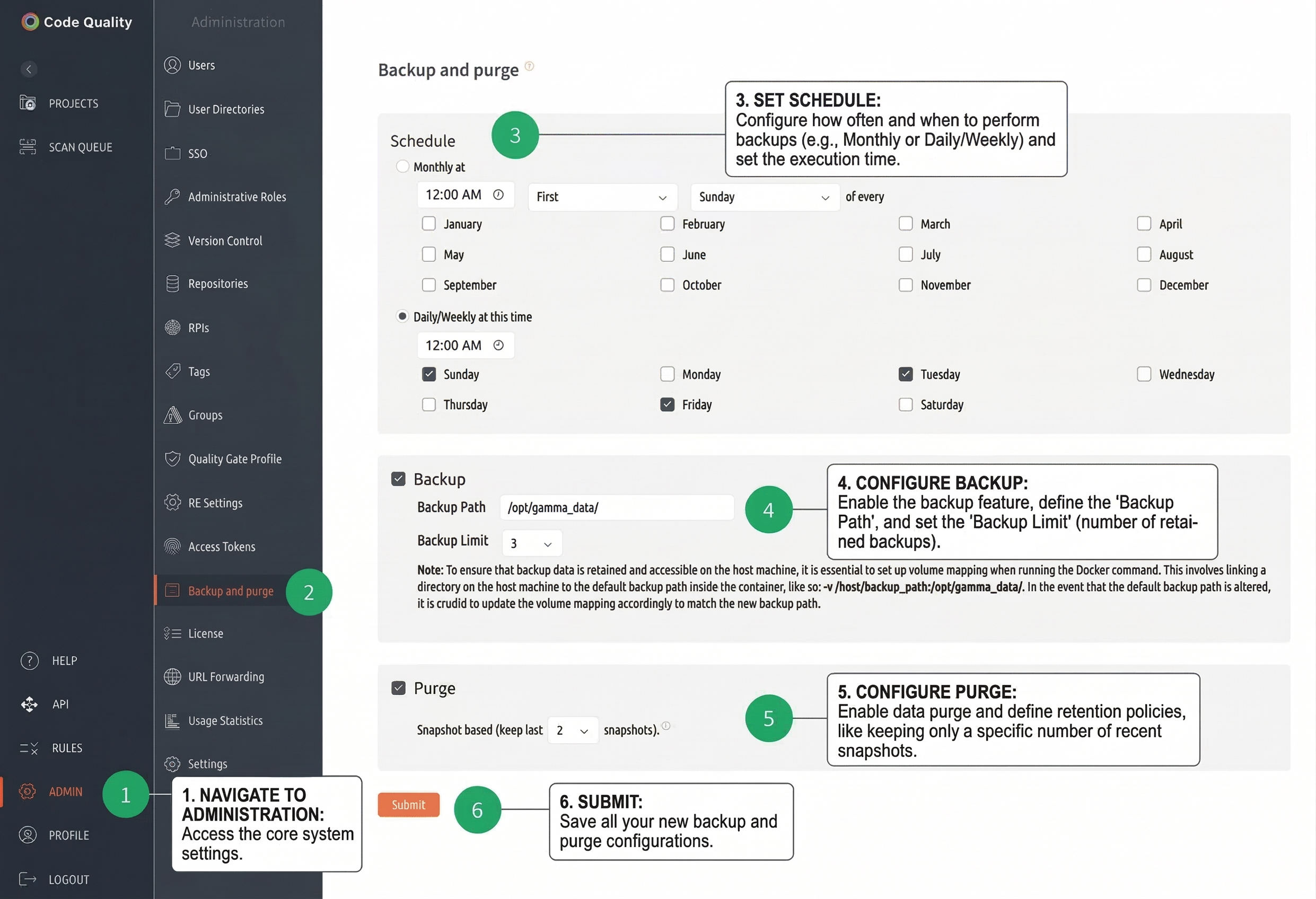

Backup Configuration Interface

Step-by-Step Configuration:

Navigate to Administration: Access the core system settings
- Click ADMIN in the left sidebar
- Select Backup and purge from the administration menu
Set Schedule (Step 3): Configure how often and when to perform backups
- Choose between Monthly or Daily/Weekly schedules
- Set the execution time (e.g., 12:00 AM)
- For monthly backups: Select specific months to run
- For daily/weekly: Choose specific days of the week
Configure Backup (Step 4): Enable the backup feature and define settings
- Check the Backup checkbox to enable
- Backup Path: Set to /opt/gamma_data/ (default container path)
- Backup Limit: Set number of retained backups (e.g., 3 for keeping 3 recent backups)
Configure Purge (Step 5 Optional): Enable data purge and define retention policies
- Check the Purge checkbox to enable automatic cleanup
- Snapshot based (keep last X snapshots): Set retention number (e.g., 2 snapshots)
Submit (Step 6): Save all your new backup and purge configurations
- Click Submit to apply the settings
- Backup will run according to the configured schedule

Generated Files Location:

Backup files are stored in the mapped host directory
Check: /home/${USER}/BrowserStackCodeQuality/gamma_data/backup/
Format: .tar.gz compressed archives with timestamps

Option B: CLI-Based Backup

Use the built-in backup script for manual or scripted backups:

bash

docker exec -it <container_name_or_id> /opt/gamma/gamma_ui/dbscripts/scripts/backup_restore.sh

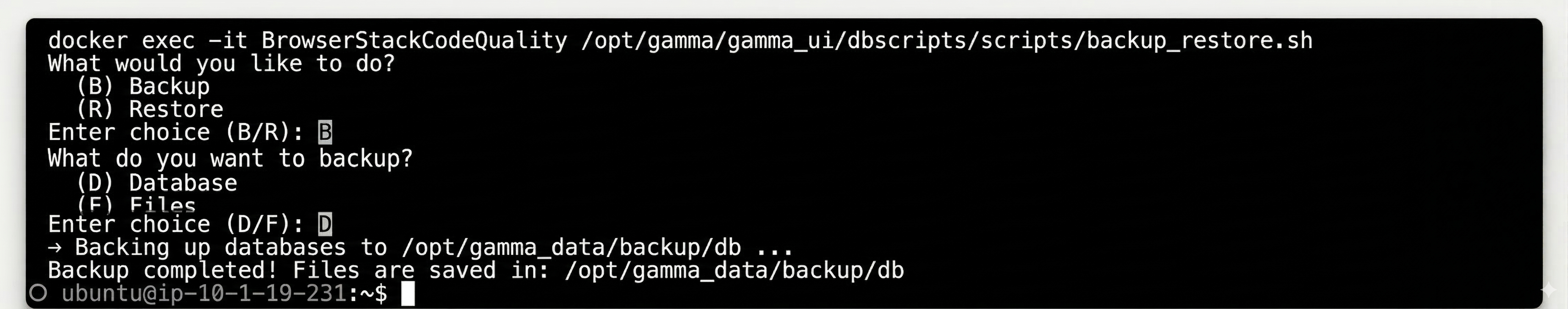

CLI Backup Configuration

Backup Flow:

Select Choice (B) for Backup
Select Choice (D) for Database backup
Follow prompts to specify backup location and filename
Backup file saved to mapped volume directory

Database Restore Methods

Pre-Restore Verification

WARNING

Critical Steps: Always verify backup integrity and create a safety backup before restoration.

bash

# Verify backup file integrity
if [[ -f "gamma_backup.sql" ]]; then
    head -10 gamma_backup.sql | grep -q "PostgreSQL database dump" && echo " Backup file appears valid"
else
    echo " Backup file not found"
fi

# Check current database status
docker exec BrowserStackCodeQuality psql -U postgres -l

CLI-Based Restore

Method 1: Using Built-in Script

bash

docker exec -it BrowserStackCodeQuality /opt/gamma/gamma_ui/dbscripts/scripts/backup_restore.sh

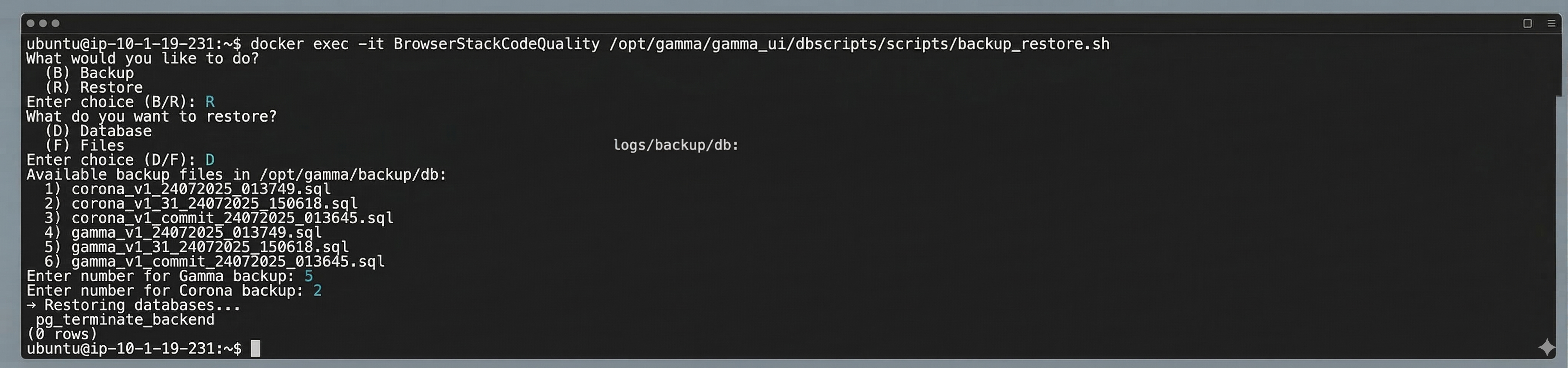

CLI Restore Configuration

Restore Flow:

Select Choice (R) for Restore
Select Choice (D) for Database restore
Safety Backup: When prompted "Create backup before restore? (y/n)", enter y
Provide path to backup file (e.g., /opt/gamma_data/backup/gamma_backup.sql)
Confirm restore operation

Method 2: Direct PostgreSQL Restore

bash

# Stop services to prevent data corruption
docker exec BrowserStackCodeQuality supervisorctl stop all

# Restore gamma database
docker exec BrowserStackCodeQuality psql -U postgres -d gamma -c "DROP SCHEMA public CASCADE; CREATE SCHEMA public;"
docker exec BrowserStackCodeQuality psql -U postgres -d gamma -f /opt/gamma_data/backup/gamma_backup.sql

# Restore corona database
docker exec BrowserStackCodeQuality psql -U postgres -d corona -c "DROP SCHEMA public CASCADE; CREATE SCHEMA public;"
docker exec BrowserStackCodeQuality psql -U postgres -d corona -f /opt/gamma_data/backup/corona_backup.sql

# Start services
docker exec BrowserStackCodeQuality supervisorctl start all

Post-Restore Validation

bash

# Verify database restoration success
docker exec BrowserStackCodeQuality psql -U postgres -d gamma -c "
    SELECT
        schemaname,
        COUNT(*) as table_count
    FROM pg_tables
    WHERE schemaname = 'public'
    GROUP BY schemaname;"

# Check data integrity
docker exec BrowserStackCodeQuality psql -U postgres -d gamma -c "SELECT COUNT(*) as project_count FROM projects;"
docker exec BrowserStackCodeQuality psql -U postgres -d corona -c "SELECT COUNT(*) as scan_count FROM scan_results;"

# Test application functionality
curl -f http://localhost:3000/health || echo "Application health check failed"

Database Backup Verification

Verify Backup Script Availability

bash

# Check if backup script exists in container
docker exec BrowserStackCodeQuality ls -la /opt/gamma/gamma_ui/dbscripts/scripts/backup_restore.sh

# Alternative: Check for PostgreSQL tools
docker exec BrowserStackCodeQuality which pg_dump
docker exec BrowserStackCodeQuality which psql

Test Database Connection

bash

# Verify database connectivity
docker exec BrowserStackCodeQuality psql -U postgres -d gamma -c "SELECT version();"
docker exec BrowserStackCodeQuality psql -U postgres -d corona -c "SELECT COUNT(*) FROM pg_tables;"

# Check database sizes before backup
docker exec BrowserStackCodeQuality psql -U postgres -d postgres -c "
SELECT
    datname as database_name,
    pg_size_pretty(pg_database_size(datname)) as size
FROM pg_database
WHERE datname IN ('gamma', 'corona');"

Alternative Backup Methods

Direct PostgreSQL Backup (if script unavailable):

bash

# Single database backup
docker exec BrowserStackCodeQuality pg_dump -U postgres --no-owner gamma > gamma_backup_$(date +%Y%m%d).sql
docker exec BrowserStackCodeQuality pg_dump -U postgres --no-owner corona > corona_backup_$(date +%Y%m%d).sql

# Combined backup with compression
docker exec BrowserStackCodeQuality sh -c "pg_dump -U postgres --no-owner gamma | gzip > /opt/gamma_data/backup/gamma_$(date +%Y%m%d).sql.gz"
docker exec BrowserStackCodeQuality sh -c "pg_dump -U postgres --no-owner corona | gzip > /opt/gamma_data/backup/corona_$(date +%Y%m%d).sql.gz"

Automated Database Backups

Comprehensive Backup Script

Create /opt/browserstack-cq-backup.sh:

bash

#!/bin/bash
# BrowserStack Code Quality Database Backup Script

# Configuration
CONTAINER_NAME="BrowserStackCodeQuality"
BACKUP_BASE_DIR="/home/${USER}/BrowserStackCodeQuality/gamma_data/backup"
RETENTION_DAYS=7
LOG_FILE="$BACKUP_BASE_DIR/backup.log"
DATE=$(date +%Y%m%d_%H%M%S)

# Create backup directory
mkdir -p "$BACKUP_BASE_DIR"

# Logging function
log_message() {
    echo "$(date '+%Y-%m-%d %H:%M:%S') - $1" | tee -a "$LOG_FILE"
}

# Backup function
perform_backup() {
    log_message "Starting database backup for $CONTAINER_NAME"

    # Check container status
    if ! docker ps --format '{{.Names}}' | grep -q "^${CONTAINER_NAME}$"; then
        log_message "ERROR: Container $CONTAINER_NAME is not running"
        exit 1
    fi

    # Create timestamped backup
    BACKUP_DIR="$BACKUP_BASE_DIR/${DATE}"
    mkdir -p "$BACKUP_DIR"

    # Backup gamma database
    if docker exec "$CONTAINER_NAME" pg_dump -U postgres --no-owner gamma -f "/opt/gamma_data/backup/${DATE}/gamma.sql"; then
        log_message " Gamma database backup successful"
    else
        log_message " Gamma database backup failed"
        exit 1
    fi

    # Backup corona database
    if docker exec "$CONTAINER_NAME" pg_dump -U postgres --no-owner corona -f "/opt/gamma_data/backup/${DATE}/corona.sql"; then
        log_message " Corona database backup successful"
    else
        log_message " Corona database backup failed"
        exit 1
    fi

    # Create compressed archive
    cd "$BACKUP_BASE_DIR"
    tar -czf "db_backup_${DATE}.tar.gz" "${DATE}/" && rm -rf "${DATE}/"

    log_message " Backup completed: db_backup_${DATE}.tar.gz"
}

# Cleanup old backups
cleanup_old_backups() {
    log_message "Cleaning up backups older than $RETENTION_DAYS days"
    find "$BACKUP_BASE_DIR" -name "db_backup_*.tar.gz" -mtime +$RETENTION_DAYS -delete
    find "$BACKUP_BASE_DIR" -name "*.sql" -mtime +$RETENTION_DAYS -delete
}

# Main execution
perform_backup
cleanup_old_backups
log_message "Backup process completed successfully"

Cron Schedule Setup

bash

# Make script executable
chmod +x /opt/browserstack-cq-backup.sh

# Add to crontab for daily backups at 2 AM
(crontab -l 2>/dev/null; echo "0 2 * * * /opt/browserstack-cq-backup.sh >> /var/log/browserstack-cq-backup.log 2>&1") | crontab -

# Weekly backup (Sundays at 1 AM)
(crontab -l 2>/dev/null; echo "0 1 * * 0 /opt/browserstack-cq-backup.sh weekly >> /var/log/browserstack-cq-weekly-backup.log 2>&1") | crontab -

# View current cron jobs
crontab -l

Backup Troubleshooting

Common Issues and Solutions

Permission Denied Errors:

bash

# Check container permissions
docker exec BrowserStackCodeQuality ls -la /opt/gamma_data/backup/

# Fix permissions if needed
docker exec BrowserStackCodeQuality chmod 755 /opt/gamma_data/backup/
docker exec BrowserStackCodeQuality chown -R postgres:postgres /opt/gamma_data/backup/

Disk Space Issues:

bash

# Check available disk space
df -h /home/${USER}/BrowserStackCodeQuality/

# Check backup directory size
du -sh /home/${USER}/BrowserStackCodeQuality/gamma_data/backup/

# Clean up old backups manually
find /home/${USER}/BrowserStackCodeQuality/gamma_data/backup/ -name "*.sql" -mtime +30 -delete

Database Connection Issues:

bash

# Test PostgreSQL connectivity
docker exec BrowserStackCodeQuality pg_isready -U postgres

# Check PostgreSQL service status
docker exec BrowserStackCodeQuality supervisorctl status | grep postgres

# Restart PostgreSQL if needed
docker exec BrowserStackCodeQuality supervisorctl restart postgresql

Backup Script Issues:

bash

# Test backup script manually
docker exec BrowserStackCodeQuality ls -la /opt/gamma/gamma_ui/dbscripts/scripts/

# Check script permissions
docker exec BrowserStackCodeQuality test -x /opt/gamma/gamma_ui/dbscripts/scripts/backup_restore.sh && echo "Script is executable" || echo "Script is not executable"

Best Practices

Test Restores: Verify backup integrity by testing restore procedures quarterly
Version Consistency: Ensure backup and restore environments use identical BrowserStack Code Quality versions
Monitor Success: Log backup operations and set up alerts for failures
Secure Storage: Store backups in secure, encrypted locations
Retention Policy: Maintain appropriate backup retention (daily: 7 days, weekly: 4 weeks, monthly: 3 months)

Troubleshooting

Backup Fails:

Verify Docker container is running and accessible
Check disk space in backup directory
Ensure proper permissions on backup directory

Restore Fails:

Confirm backup file integrity and format
Verify database is accessible and not corrupted
Check that services are stopped during restore

File Backup and Restore – Application file backups
Updates Guide – Version upgrade procedures
Environment Variables – Configuration settings
